Product Description
12" x 3" Poly on Cast Iron wheel
Swivel Caster 3,420 lbs load capacity 13 1/2" overall height 4 1/2" x 6 1/4" overall plate size Tapered Roller Bearing 5/16" AISI 1045 heat treated steel. Standard lead time is 10 days.
Used for Body Dolly Carts, Engine Dollies, Material Carts, Paint Line Dollies, Towed Trash Gondolas, Chassis Rack Carts, and Production Dollies
|
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 12"
Tread Width 3"
Brake No
Mounting Type Top Plate

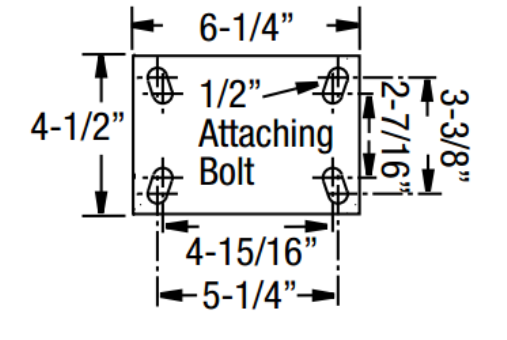

Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 2-7/16" x 4-15/16"
Wheel Material Polyurethane
Overall Height 13-1/2"
Load Capacity 3,420 lbs
Finish Zinc
Wheel Bearing Tapered Roller Bearing
