Product Description

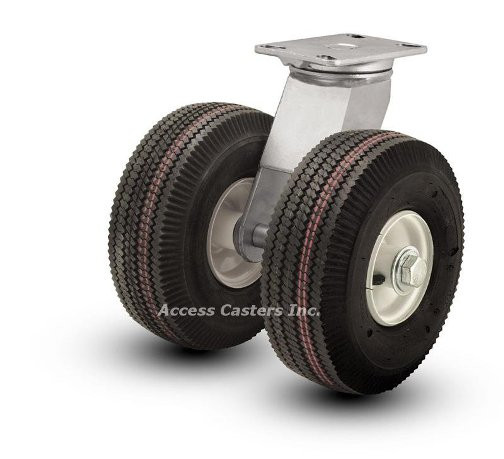

14" Dual Wheel Swivel Caster
Two 5.30/6 pneumatic wheels
1570 pound load rating
Roller Bearings
17-3/4" Mounting Height
4" Swivel Lead
5-1/4" X 7-1/4" top plate
3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8 Bolt Hole Pattern
Zinc Plated
This caster requires 1 to 2 weeks to ship.
Due to the size of the caster they may need to be shipped via truck.
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 14"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Wheel Material Pneumatic
Overall Height 17-3/4"
Load Capacity 1,570 lbs
Finish Zinc
Wheel Bearing Roller Bearing
