Product Description
Albion 4" Dual Wheel Rigid Caster
- Dual 4" x 2" Trionix machined nylon wheel with precision ball bearings
- 2000 pound capacity
- 5-1/2" mounting height
- 4-1/2" x 6-1/4" top plate, AISI 1045 construction
- 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt hole pattern
- RoHS zinc plate finish

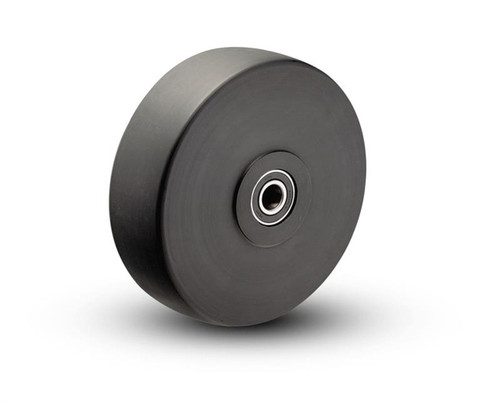

Trionix high impact polymer wheels deliver superior rollability, capacity and slide resistance. Trionix features unique polymers that resist corrosion and most chemicals. Wheels are machined and straight sided.
281 Series characteristics
Designed for greater capacity and better distribution of floor load with lowest possible overall height. These casters have differential action when changing direction, thus greatly reducing the scrubbing effect resulting from use of wide faced, smaller diameter wheels.
**Call for brake & swivel lock options**
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 4"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Wheel Material Nylon
Overall Height 5-1/2"
Load Capacity 2,000 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
