Product Description
2 1/2" Polyurethane Single Wheel
Swivel Caster
95 lbs load capacity
3 1/8" mounting height
Zinc finish, Double ball bearing raceways
Heat treated raceways for increased wear resistance
NSF approved less thread guards
RoHS compliant
**Must Select Plate Size**
Plate sizes available (additional plates available please call)

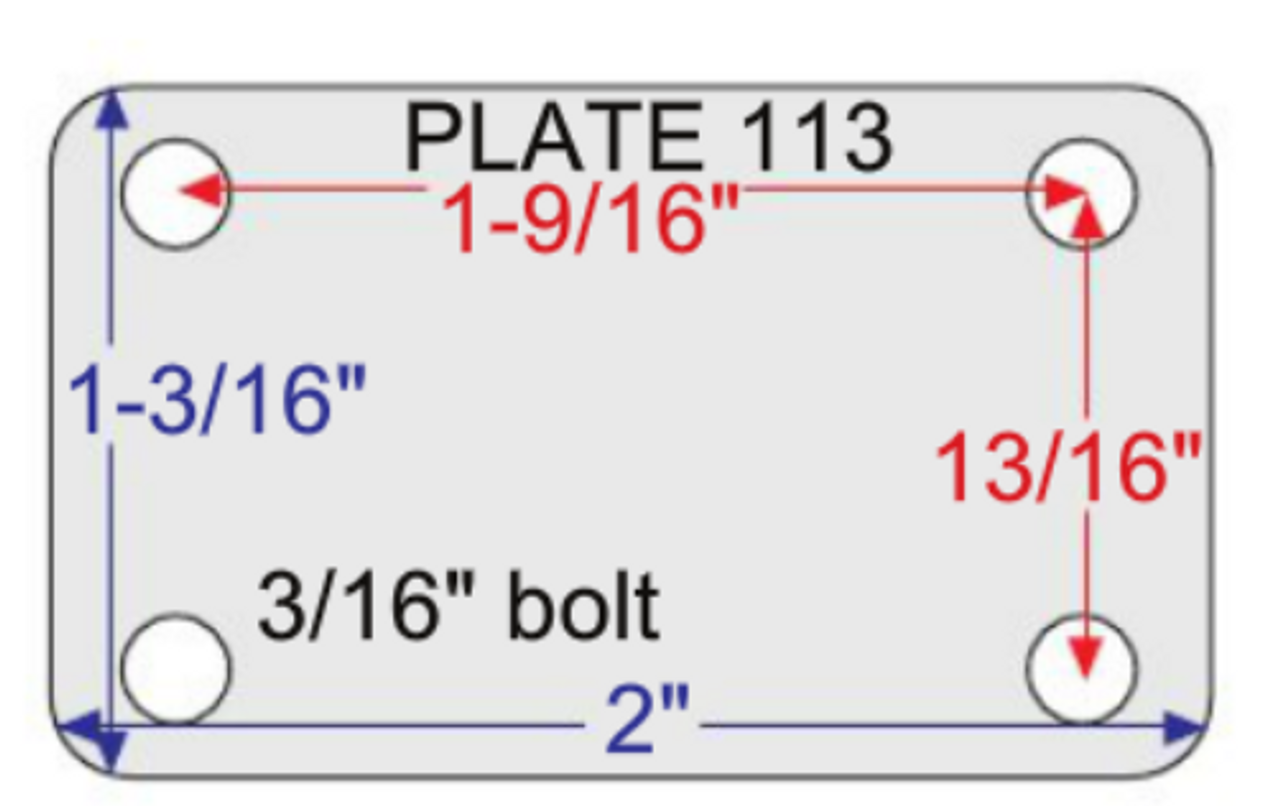

1 3/16 X 2

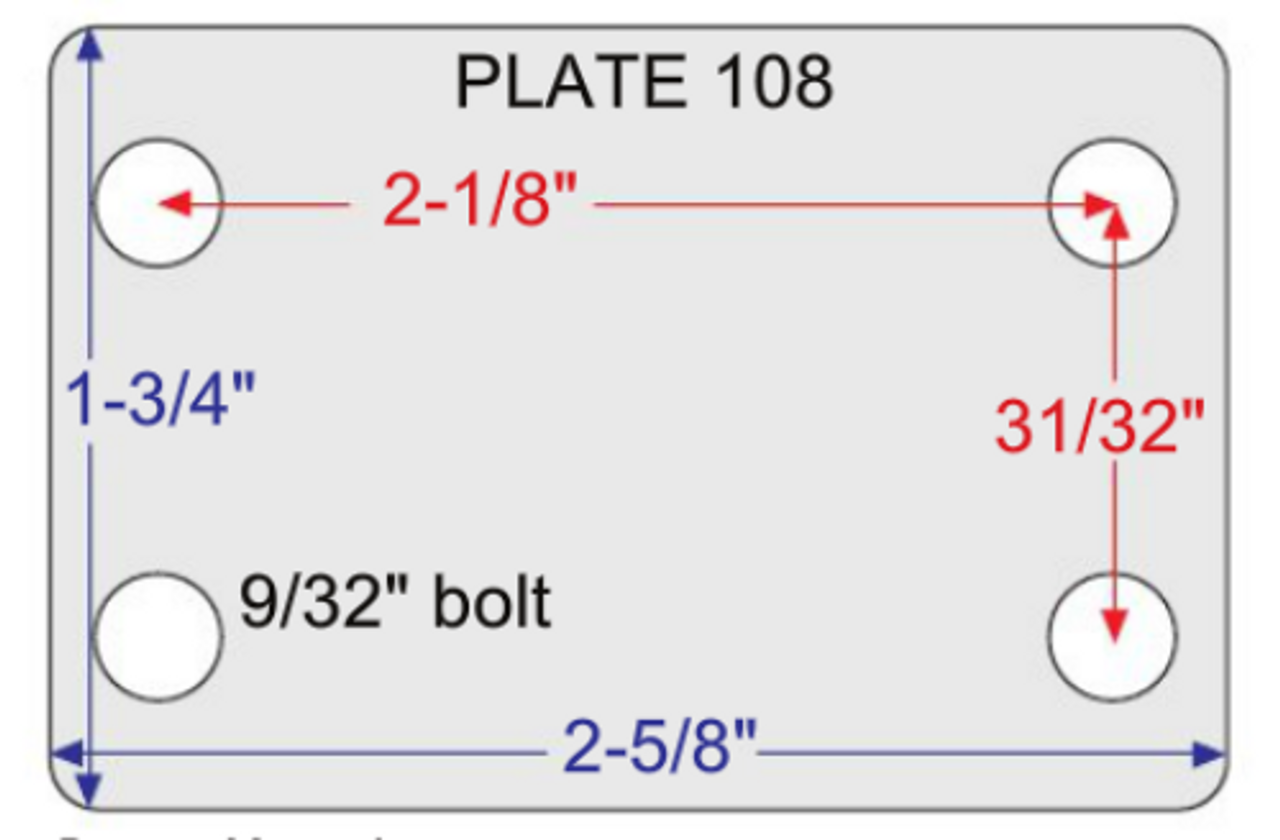

1 3/4 X 2 5/8
1 3/16 x 2 is the standard plate size.
If no size is selected, then the 1 3/16 x 2
Please select or email your plate choice.
Must purchase Carton Quantities of 80 or more
Used for Display and Store Fixtures, Carts, Institutional Equipment,
Medical Equipment, and Furniture
Swivel Caster
95 lbs load capacity
3 1/8" mounting height
Zinc finish, Double ball bearing raceways
Heat treated raceways for increased wear resistance
NSF approved less thread guards
RoHS compliant
**Must Select Plate Size**
Plate sizes available (additional plates available please call)
1 3/16 X 2
1 3/4 X 2 5/8
1 3/16 x 2 is the standard plate size.
If no size is selected, then the 1 3/16 x 2
plate
size will be shipped. Please select or email your plate choice.
Must purchase Carton Quantities of 80 or more
Used for Display and Store Fixtures, Carts, Institutional Equipment,
Medical Equipment, and Furniture
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 2-1/2"
Tread Width 13/16"
Brake No
Mounting Type Top plate
Mounting Size 1-3/16" x 2"
Bolt Hole Pattern 1-3/4" x 2-5/8"
Wheel Material Polyurethane
Overall Height 3-1/8"
Load Capacity 95 lbs
Finish Zinc
Wheel Bearing Plain
