Product Description

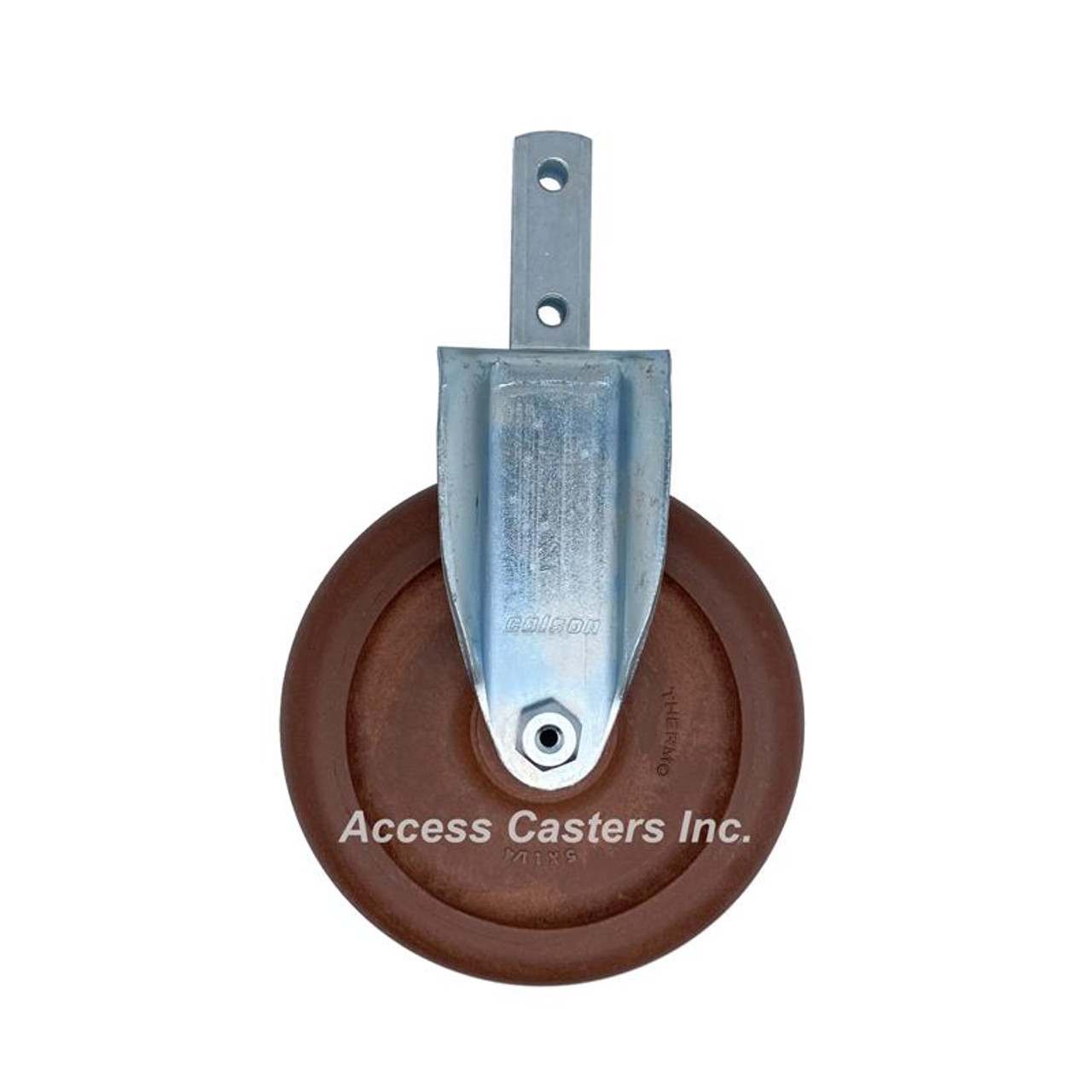

Colson 2 Series Square Stem Rigid CasterWheel: 5" x 1-1/4" Thermo Hi-Temp wheel with plain bore
Capacity: 300 pounds
Mounting height: 6-1/16"
Zinc plate finish
NSF listed
3/8" hollow axle
Designed for easy installation on the inside of angle iron legs or against flat surfaces
Stems may be bolted or riveted against any flat vertical surface
Thermo wheels feature a standard operating temperature range from -70°F (continuous service) to to 480°F (continuous service. These wheels are molded from an exclusive engineered resin compound that offers non-marking floor protection, near zero water absorption, high load capacities and long service life.
Available options:
BRK1: Top lock brake:
MTG1: 2-1/16" long x 7/8" square stem with 1 cross hole
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 5"
Tread Width 1-1/4"
Brake No
Mounting Type Square Stem
Mounting Size 3/8"
Wheel Material High Temperature
Overall Height 6-1/16"
Load Capacity 300 lbs
Finish Zinc
Wheel Bearing Plain
