Product Description

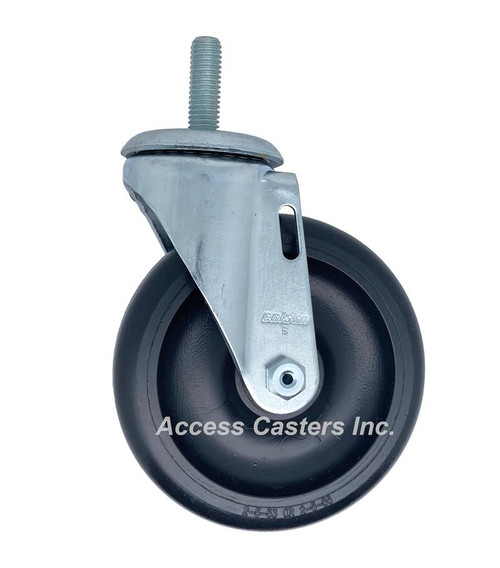

Genuine Colson 5" Swivel caster
- 5" x 1-1/4" Round tread Performa Rubber wheel with ball bearings
- Gray non-marking wheel
- Standard stem is 1/2-13 x 1-1/2"
- Optional stems are available
- Gray on gray color scheme
- 250-pound capacity
- 6-1/16" load height
- 3-13/16" swivel radius
- Available with top lock brake
- RoHS-compliant zinc plate finish
- NSF listed
- Wheel meets requirements of federal specification FF-C-88C
OEM PRICING IS AVAILABLE. CALL 773-881-4186
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 5"
Tread Width 1-1/4"
Brake No
Mounting Type Threaded Stem
Mounting Size 1/2" - 13 x 1-1/2"
Wheel Material Soft Rubber
Overall Height 6-1/16"
Load Capacity 250 lbs
Finish Zinc
Wheel Bearing Ball Bearing
