Product Description

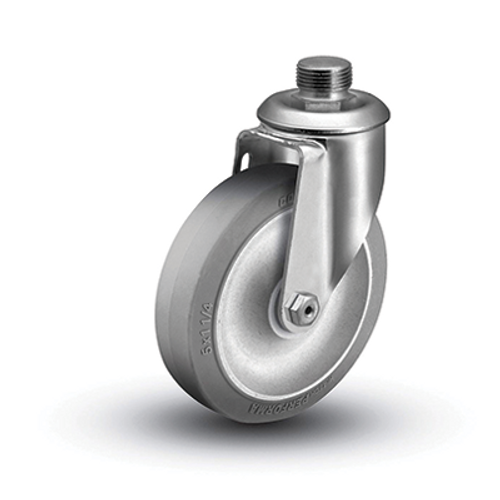

2.05253.445 Colson 2 Series Pipe Stem Caster
- 3/4" standard male pipe fitting
- Actual stem diameter is approximately 1-1/16"
- 5" x 1-1/4" Performa Rubber wheel with ball bearings
- 325 pound capacity
- 6-5/16" load height
- 3-13/16" swivel radius
- 7/16" nut below raceway for easy installation
- NSF listed
- RoHS compliant zinc finish
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 5"
Tread Width 1-1/4"
Brake No
Mounting Type Threaded Stem
Mounting Size 3/4" - 1-1/16"
Wheel Material Soft Rubber
Overall Height 6-5/16"
Load Capacity 325 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
