Product Description
5" Colson Rigid Caster
- 5" x 1-1/4" Red Polyurethane HI-TECH wheel with ball bearings
- 300 pound capacity
- 6-3/16" mounting height
- 2-1/2" x 3-5/8" top plate
- 1-3/4" x 2-13/16" to 3" bolt hole pattern
- RoHS compliant zinc finish
- one piece stamped construction
- 3/8" hollow axle with lock nut
In-stock for prompt shipment.

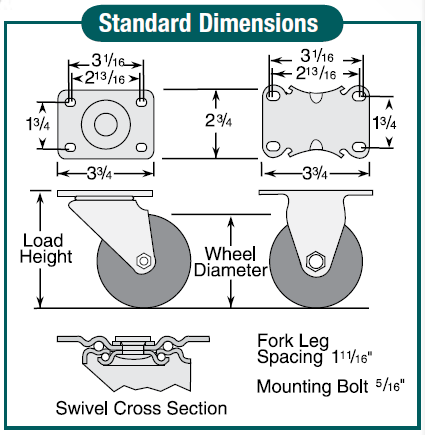

CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 5"
Tread Width 1-1/4"
Brake No
Mounting Type Top Plate
Mounting Size 2-1/2" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-13/16" to 3"
Wheel Material Polyurethane
Overall Height 6-3/16"
Load Capacity 300 lbs
Finish Zinc
Wheel Bearing Ball Bearing
