Product Description
|

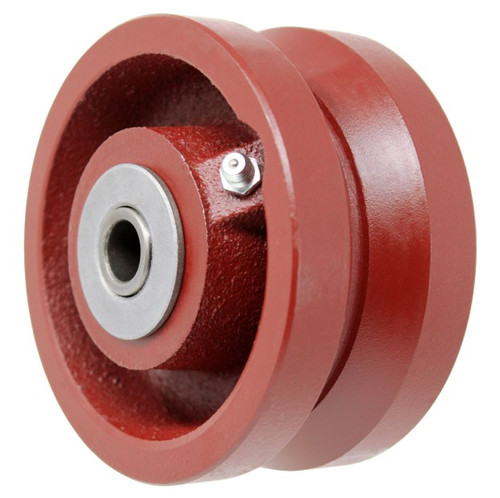

4" x 2" V-Groove wheel
Cast Iron Swivel Caster 800 lbs load capacity 5 5/8" overall height 7/8" Groove Width
7/16" Groove Depth
Roller Bearings 4" x 4 1/2" overall plate size
Used for Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks, and Shop Carts
|
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 4"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Cast Iron
Overall Height 5-5/8"
Load Capacity 800 lbs
Finish Zinc
Wheel Bearing Roller Bearing
