Product Description

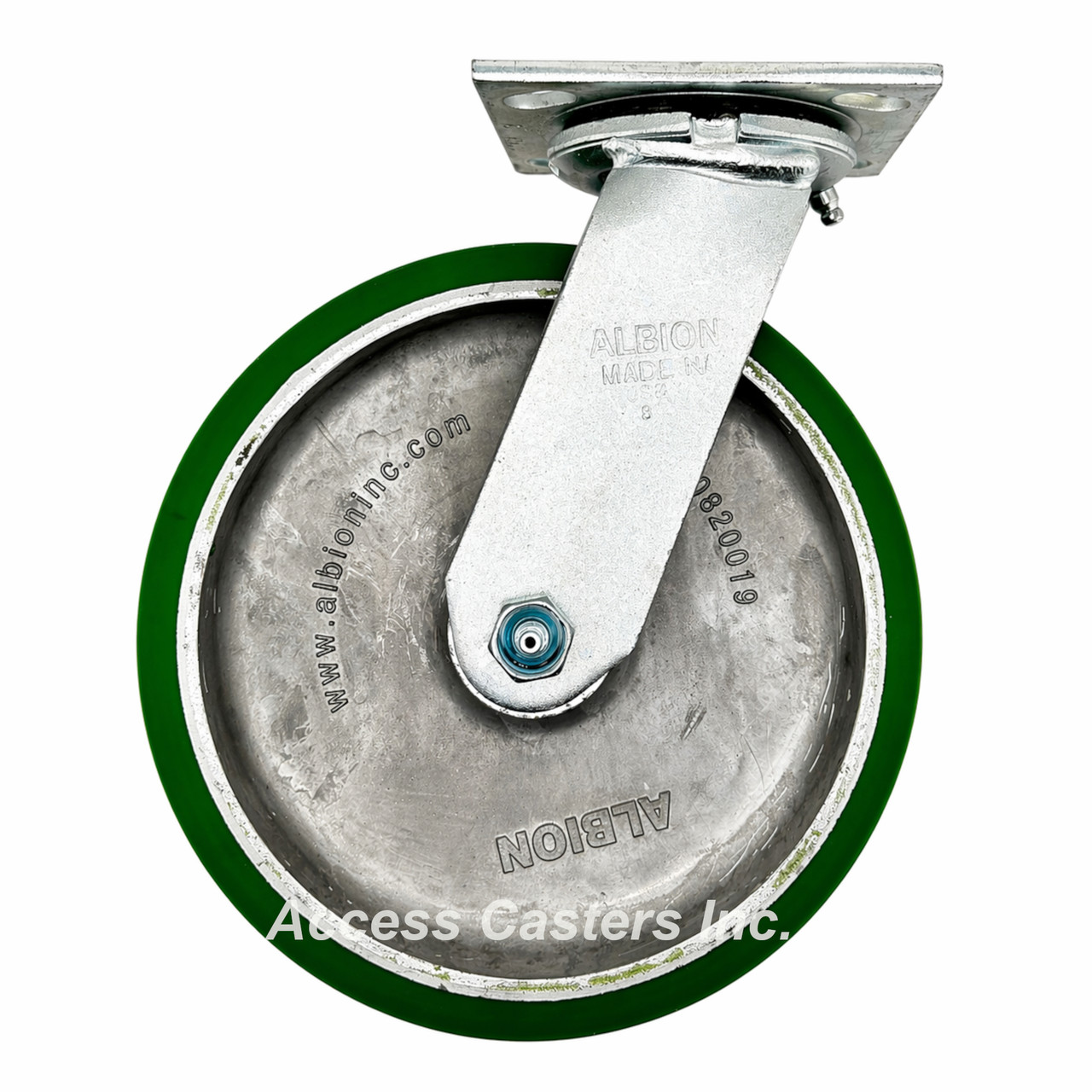

- Albion 16 Series Casters with Green Polyurethane on Aluminum Wheels
- Roller Bearings in wheels
- 4" x 4-1/2" top plates
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
- 8" casa ters have 1250 pound capacity and 9-1/2" mounting height
- Rohs-compliant zinc plate finish
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Polyurethane
Overall Height 9-1/2"
Load Capacity 1,250 lbs
Finish Zinc
Wheel Bearing Roller Bearing
