Product Description
|
12" x 3" Phenolic wheel
Rigid Caster 3500 lbs load capacity 13 1/2" overall height 4 1/2" x 6 1/4" overall plate size Roller Bearing
5/16" AISI 1045 heat treated steel. Standard lead time is one week.
Used for Conveyor-drawn tow trucks, heavy duty bakery racks, production dollies, heavy duty dough troughs, etc.

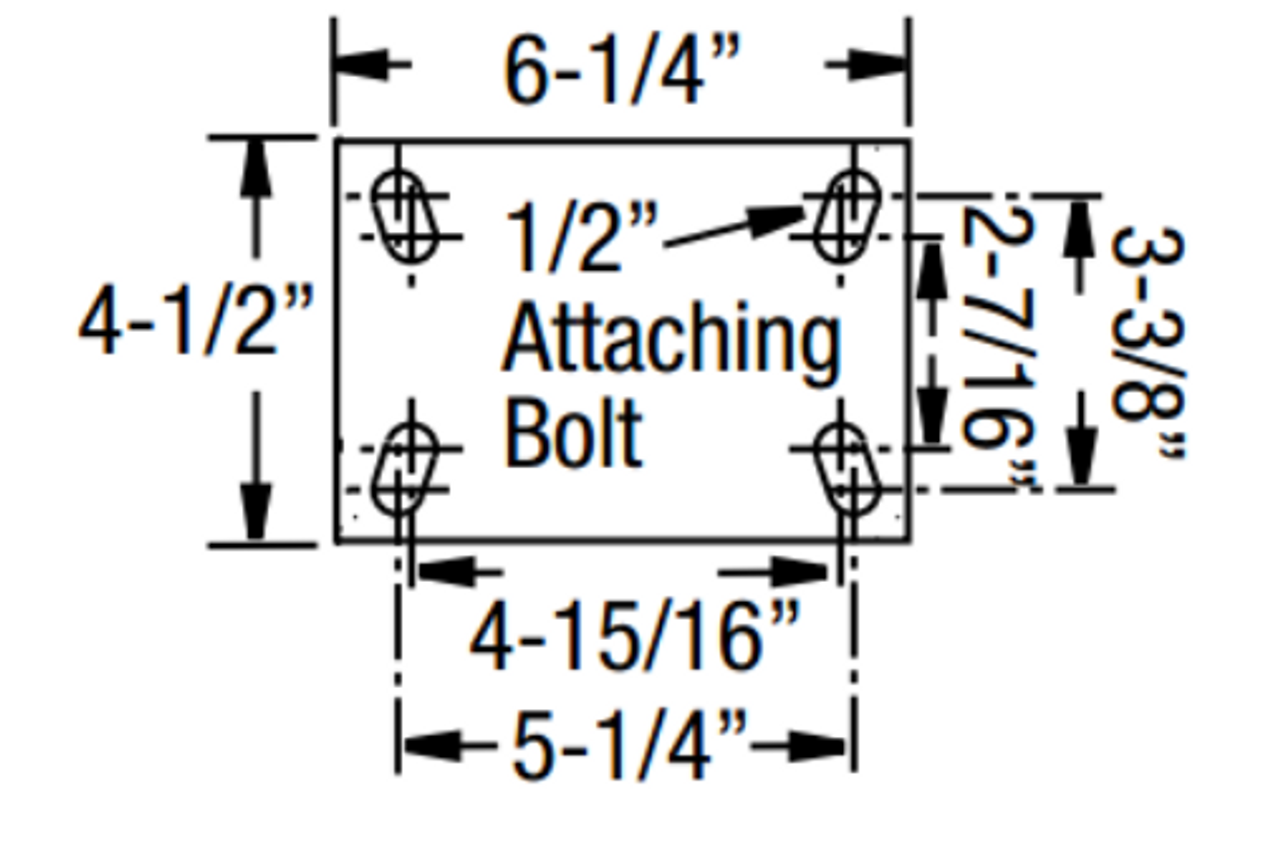

Top Plate Dimensions:
 |
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 12"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Wheel Material Phenolic
Overall Height 13-1/2"
Load Capacity 3,500 lbs
Finish Heat Treated Steel
Wheel Bearing Roller Bearing
