Blickle LKX Series - Stainless Steel
LKX 14-Series
Stainless steel industrial top plate casters with capacities up to 770 lbs. RoHs Compliant
LKX castor bracket series features heavy pressed chromium-nickel stainless steel parts, double ball bearing in the swivel head, with strong central kingpin. The special Blickle dynamic riveting prcoess of the swivel head results in minimal swivel head play and smooth rolling characteristics with an increased service life achieved by the work hardening of the ball race grooves. All parts incl. axle material are corrision-resistant. Maintenance free, lubricated with long-life grease.
The LKX rig series with top plate fitting are available with the following wheels:
 |
Tread: High-quality thermoplastic rubber-elastomer (TPE), containing traces of oil, 85 shore A, gray, non-marking, chemically bonded. Wheel Center: impact-resistant polypropylene, silver gray. Bearing Type: Ball bearing with additional ball bearing sealst, with synthetic thread guard. |
 |
Tread: High-quality thermoplastic polyurethane (TPU) 94 shore A, dark gray, non-marking, non-staining, chemically bonded. Wheel Center: impact-resistant nylon, natural white. Bearing Type: Seated ball bearing |
|
Wheel: High-quality, impact-resistant nylon, very rugged, extra heavy wheel design, 70 shore D, Gray Bearing Type: Stainless steel ball bearing.
|
 |
Tires: High-quality elastic solid rubber in smooth rolling quality 'Blickle EasyRoll', 65° shore A, gray. Vulcanized tire. Wheel center: impact-resistant nylon, black. Bearing type: Stainless steel ball bearing and synthetic cover |
For mor information view our catalog page.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
List Price: $56.97
Your Price: $25.81
You Save: $31.16 (55 %)

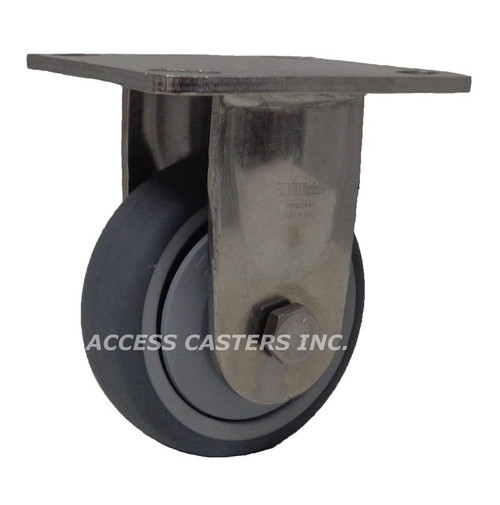

5 x 1 9/16" POTH Wheel Stainless Steel Rigid Plate Caster Ball Bearing 770 lbs capacity
|
|
|
|
|
|
|
|
|
|
|
|
