Drawings and PDFs available upon request.
Please inquire about our American made products. We have product lines that have all or most of their components manufactured in the USA! Most of our products are RoHS Compliant please ask about the specific product you need.
Medium duty institutional bolt hole swivel casters with capacities up to 330 lbs. Swivel casters for 1/2" mounting bolts. LKRA castor bracket series features pressed steel parts, double ball bearing in the swivel head, with strongcentral kingpin. The special Blickle dynamic riveting process of the swivel head results in minimal swivel headplay and smooth rolling characteristics with an increased service life achieved by the work hardening of the ball race grooves. Maintenance free lubricated with long-life grease.The LKRA rig series with bolt hole fitting is available with the following wheels:
4 x 1 1/4 PATH Wheel Swivel Caster w/brake Ball Bearing 240 lbs cap 1/2 with Mounting hole

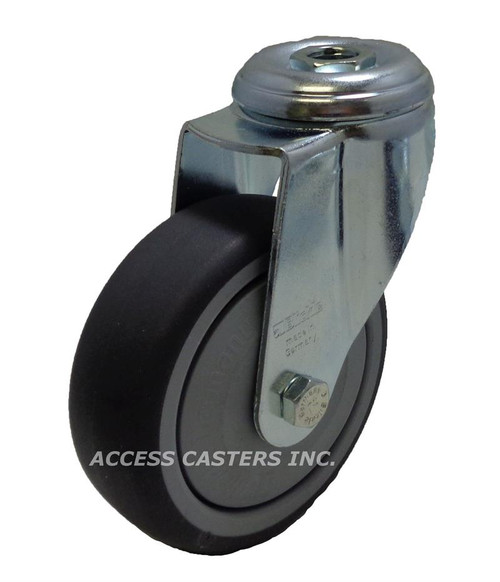

4 x 1 1/4 PATH Wheel Swivel Caster Ball Bearing 240 lbs capacity 1/2 with Mounting hole
5 x 1 1/4 PATH Wheel Swivel Caster w/brake Ball Bearing 265 lbs cap 1/2 with Mounting hole
5 x 1 1/4 PATH Wheel Swivel Caster Ball Bearing 265 lbs capacity with 1/2 Mounting hole

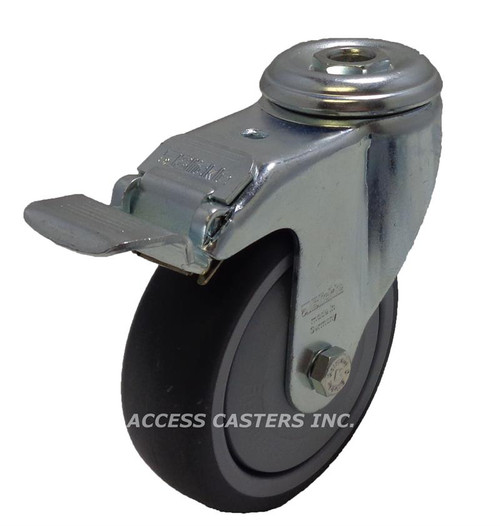

3 1/8 x 1 1/4 PATH Wheel Swivel Caster w/brake Ball Bearing 220 lbs cap with 1/2 Mounting hole
3 1/8 x 1 1/4 PATH Wheel Swivel Caster Ball Bearing 220 lbs capacity with 1/2 Mounting hole
4 x 1 1/4 POA Wheel Swivel Caster Plain Bore 265 lbs capacity with 1/2 Mounting hole
4 x 1 1/4 POA Wheel Swivel Caster w/brake Plain Bore 265 lbs cap with 1/2 Mounting hole
5 x 1 1/4 POA Wheel Swivel Caster Plain Bore 265 lbs capacity with 1/2 Mounting hole
5 x 1 1/4 POA Wheel Swivel Caster w/brake Plain Bore 265 lbs cap with 1/2 Mounting hole
3 1/8 x 1 1/4 POA Wheel Swivel Caster Plain Bore 265 lbs capacity with 1/2 Mounting hole
3 1/8 x 1 1/4 POA Wheel Swivel Caster w/brake Plain Bore 265 lbs cap with 1/2 Mounting hole
4 x 1 1/4 TPE Wheel Swivel Caster Plain Bore 240 lbs capacity with 1/2 Mounting hole
4x1-1/4 TPE Wheel Swivel Caster w/brake Plain Bore 240 lbs capacity with 1/2 Mounting hole
4 x 1 1/4 TPE Wheel Swivel Caster w/brake Ball Bearing 220 lbs cap with 1/2 Mounting hole
4 x 1 1/4 TPE Wheel Swivel Caster Ball Bearing 240 lbs capacity with 1/2 Mounting hole
5 x 1 1/4 TPE Wheel Swivel Caster Plain Bore 265 lbs capacity with 1/2 Mounting hole
5x1-1/4 TPE Wheel Swivel Caster w/brake Plain Bore 265 lbs capacity with 1/2 Mounting hole
5 x 1 1/4 TPE Wheel Swivel Caster w/brake Ball Bearing 265 lbs cap with 1/2 Mounting hole
5 x 1 1/4 TPE Wheel Swivel Caster Ball Bearing 265 lbs capacity with 1/2 Mounting hole
3 1/8 x 1 3/4 TPE Wheel Swivel Caster Plain Bore 220 lbs capacity with 1/2 mounting hole
3-1/8 x 1-1/4 TPE Wheel Swivel Caster w/brake Plain Bore 220 lbs capacity with 1/2 mounting hole
3 1/8 x 1 1/4 TPE Wheel Swivel Caster w/brake Ball Bearing 220 lbs cap with 1/2 mounting hole
3 1/8 x 1 1/4 TPE Wheel Swivel Caster Ball Bearing 220 lbs capacity with 1/2 mounting hole
2 x 1 1/4 VSTH Wheel Swivel Caster Ball Bearing 330 lbs capacity with 1/2 Mounting Hole
