Drawings and PDFs available upon request.
Please inquire about our American made products. We have product lines that have all or most of their components manufactured in the USA! Most of our products are RoHS Compliant please ask about the specific product you need.
Medium duty stainless steeel institutional top plate swivel casters with capacities up to 265 lbs. The LKPXA rig series with bolt hole fitting is available with the following wheels:

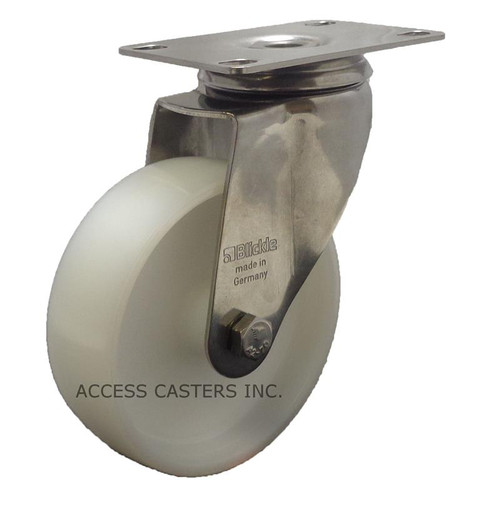

3 1/8 x 1 1/4 PO Wheel Stainless Steel Swivel Plate Caster Plain bore 265 lbs capacity
3 1/8 x 1 1/4 PO Wheel Stainless Steel Swivel Plate Caster with stop fix brake Plain bore 265 lbs capacity
4 1/4 x 1 1/4 PO Wheel Stainless Steel Swivel Plate Caster Plain bore 265 lbs capacity

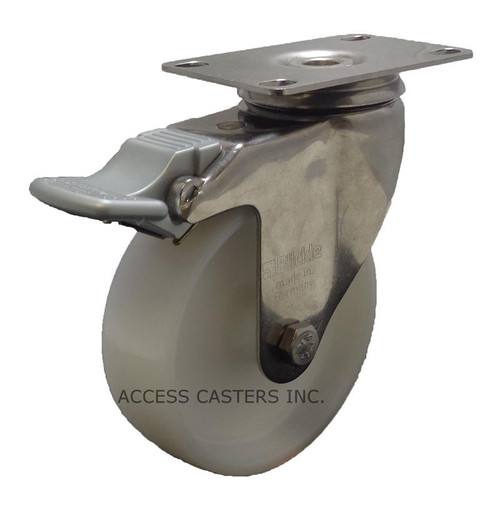

4 1/4 x 1 1/4 PO Wheel Stainless Steel Swivel Plate Caster with stop fix brake Plain bore 265 lbs capacity
5 1/4 x 1 1/4 PO Wheel Stainless Steel Swivel Plate Caster Plain bore 265 lbs capacity
5 1/4 x 1 1/4 PO Wheel Stainless Steel Swivel Plate Caster with stop fix brake Plain bore 265 lbs capacity

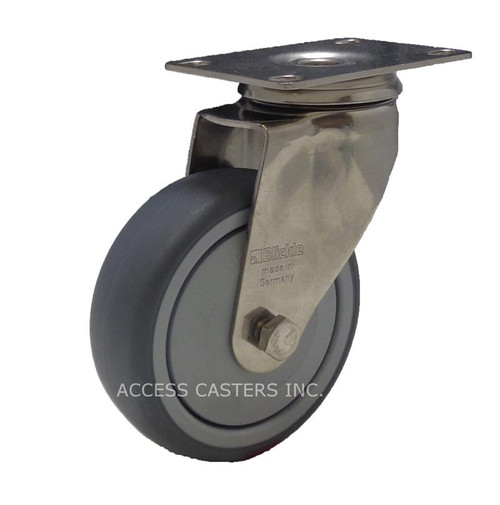

3 1/8 x 1 1/4 PATH Wheel Stainless Steel Swivel Plate Caster with stop fix brake Ball bearing 220 lbs capacity
3 1/8 x 1 1/4 PATH Wheel Stainless Steel Swivel Plate Caster Ball Bearing 220 lbs capacity
4 1/4 x 1 1/4 PATH Wheel Stainless Steel Swivel Plate Caster with stop fix brake Ball bearing 240 lbs capacity
4 1/4 x 1 1/4 PATH Wheel Stainless Steel Swivel Plate Caster Ball Bearing 240 lbs capacity
5 1/4 x 1 1/4 PATH Wheel Stainless Steel Swivel Plate Caster with stop fix brake Ball bearing 265 lbs capacity
5 1/4 x 1 1/4 PATH Wheel Stainless Steel Swivel Plate Caster Ball Bearing 265 lbs capacity
3 1/8 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster Plain bore 220 lbs capacity
3 1/8 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster with stop fix brake Plain bore 220 lbs capacity
4 1/4 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster Plain bore 240 lbs capacity
4 1/4x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster with stop fix brake Plain bore 240 lbs capacity
5 1/4 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster Plain bore 265 lbs capacity
5 1/4x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster with stop fix brake Plain bore 265 lbs capacity
3 1/8 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster with stop fix brake Ball bearing 220 lbs capacity
3 1/8 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster Ball Bearing 220 lbs capacity
4 1/4 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster with stop fix brake Ball bearing 240 lbs capacity
4 1/4 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster Ball Bearing 240 lbs capacity
5 1/4 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster with stop fix brake Ball bearing 265 lbs capacity
5 1/4 x 1 1/4 TPE Wheel Stainless Steel Swivel Plate Caster Ball Bearing 265 lbs capacity
