Product Description
PART NUMBER: SC525SS-SX-PXP-350

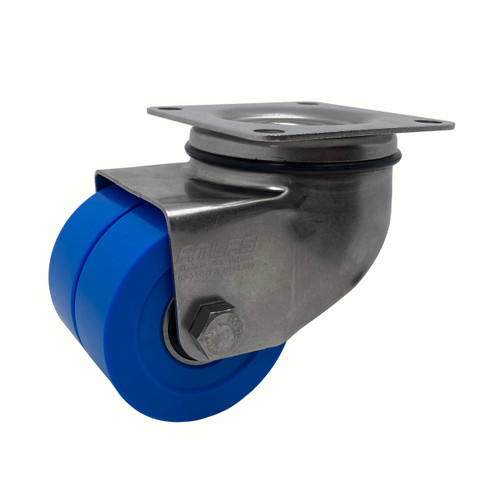

DESCRIPTION: 500 Series Swivel Caster: SS Option, 3.50 in. Adj Height Stem, 2.5in Polyurethane Whls, Prec Brg
SPECIFICATIONS
- LOAD CAPACITY: 450 lbs.
- MATERIAL OPTION: SS Option (100% Stainless)
- OVERALL HEIGHT: 3.30 in.
- SWIVEL RADIUS: 3.15 in.
- WHEEL DIAMETER: 2.50 in.
- WHEEL MATERIAL: Polyurethane 75D
- WHEEL BEARING: Precision
- TREAD WIDTH: 2.00 in.
- STEM LENGTH: 3.50 (A) in.
- STEM THREAD: 7/8-14 UNF-2A
- INSERT LENGTH: 1.0 in. (recommended stem insertion)
PRODUCT NOTES
1. Extend casters out evenly one turn at a time.
2. ONLY extend casters to dock the machine. DO NOT ship or transport the machine with casters extended.
3. MAXIMUM SYSTEM LOAD: 1,500 LBS
